Comparison

DGS-1510-20 DGS-1510-28 DGS-1510-28P DGS-1510-52 DGS-1510-28X DGS-1510-52X

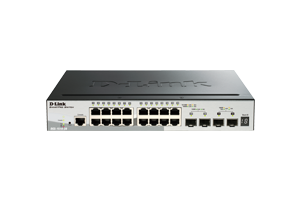

20-Port Gigabit SmartPro Switch with 16 UTP, 2 SFP and 2 SFP+ 10G Ports

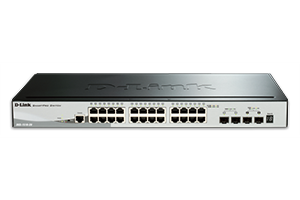

28-Port Gigabit SmartPro Switch with 24 UTP, 2 SFP and 2 SFP+ 10G Ports

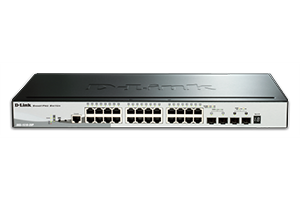

28-Port Gigabit SmartPro PoE Switch with 24 UTP, 2 SFP and 2 SFP+ 10G Ports

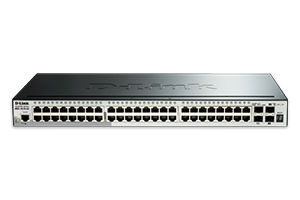

52-Port Gigabit SmartPro Switch with 48 UTP, 2 SFP and 2 SFP+ 10G Ports

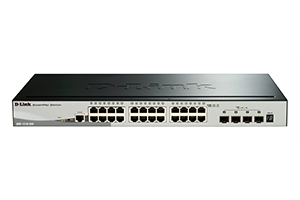

28-Port Gigabit SmartPro Switch with 24 UTP and 4 SFP+ 10G Ports

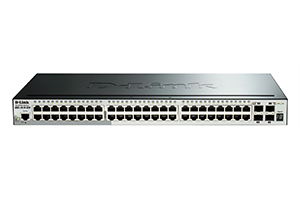

52-Port Gigabit SmartPro Switch with 48 UTP and 4 SFP+ 10G Ports

1000Base-T ports 16 Ports 24 Ports 24 Ports 48 Ports 24 Ports 48 Ports
100Base-TX ports
10Gb SFP+ ports 2 ports 2 ports 2 ports 2 ports 4 ports 4 ports
10GBase-T ports
19" Rack Mountable Yes Yes Yes Yes Yes Yes
802.1X Access Control Yes Yes Yes Yes Yes Yes
Built-in PSU Yes Yes Yes Yes Yes Yes
Cable Diagnostics Yes Yes Yes Yes Yes Yes
Command Line Interface Yes Yes Yes Yes Yes Yes
Design Desktop|Rackmountable Desktop|Rackmountable Desktop|Rackmountable Desktop|Rackmountable Desktop|Rackmountable Desktop|Rackmountable
DHCP Server Screening Yes Yes Yes Yes Yes Yes
Dimensions (Size) 346 x 346 x 104 mm 511 x 348 x 91 mm 511 x 348 x 91 mm 555 x 365 x 101 mm 440 x 210 x 44 mm 440 x 210 x 44 mm
Energy Saving Technology EEE Compliant|D-Link Green EEE Compliant|D-Link Green EEE Compliant|D-Link Green EEE Compliant|D-Link Green EEE Compliant|D-Link Green EEE Compliant|D-Link Green
Fans 1 1 2 2 1 2
High Speed Stacking Yes Yes Yes Yes Yes Yes
IGMP Snooping Yes Yes Yes Yes Yes Yes
Jumbo Frame 9216 bytes 9216 bytes 9216 bytes 9216 bytes 9216 bytes 9216 bytes
Link Aggregation Yes Yes Yes Yes Yes Yes
Number of Ports 5 - 16 24 - 28 24 - 28 48 - 52 24 - 28 48 - 52
PoE Budget 193 Watts
PoE ports 24 Ports
PoE Type Required None None PoE|PoE+ None None None
QoS Yes Yes Yes Yes Yes Yes
SFP ports 2 Ports 2 Ports 2 Ports 2 Ports
SNMP Yes Yes Yes Yes Yes Yes
Spanning Tree Protocol Yes Yes Yes Yes Yes Yes
Static Routing Yes Yes Yes Yes Yes Yes
Surveillance VLAN Yes Yes Yes Yes Yes Yes
Switch Series DGS-1510 Series DGS-1510 Series DGS-1510 Series DGS-1510 Series
Switch Type Layer2+ IP Routing Layer2+ IP Routing Layer2+ IP Routing Layer2+ IP Routing Layer2+ IP Routing Layer2+ IP Routing
Switching Capacity 76 Gbps 92 Gbps 92 Gbps 140 Gbps 128 Gbps 176 Gbps
Type of Port Required Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre
Types of ports 10Gb SFP+ Ports|SFP Ports|Gigabit Ports 10Gb SFP+ Ports|SFP Ports|Gigabit Ports 10Gb SFP+ Ports|SFP Ports|Gigabit Ports 10Gb SFP+ Ports|SFP Ports|Gigabit Ports 10Gb SFP+ Ports|Gigabit Ports 10Gb SFP+ Ports|Gigabit Ports
VLAN 4K Groups 4K Groups 4K Groups 4K Groups 4K Groups 4K Groups
Voice VLAN Yes Yes Yes Yes Yes Yes
Web-based GUI Yes Yes Yes Yes Yes Yes
