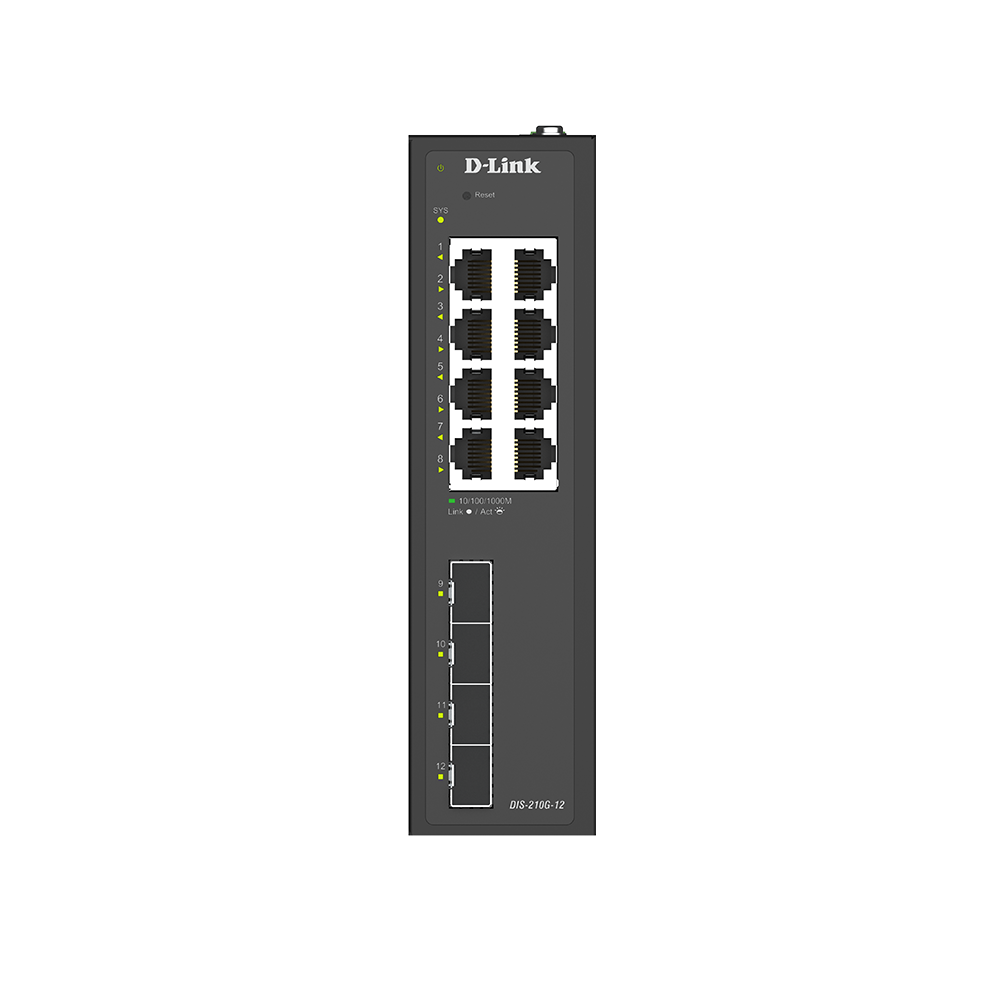

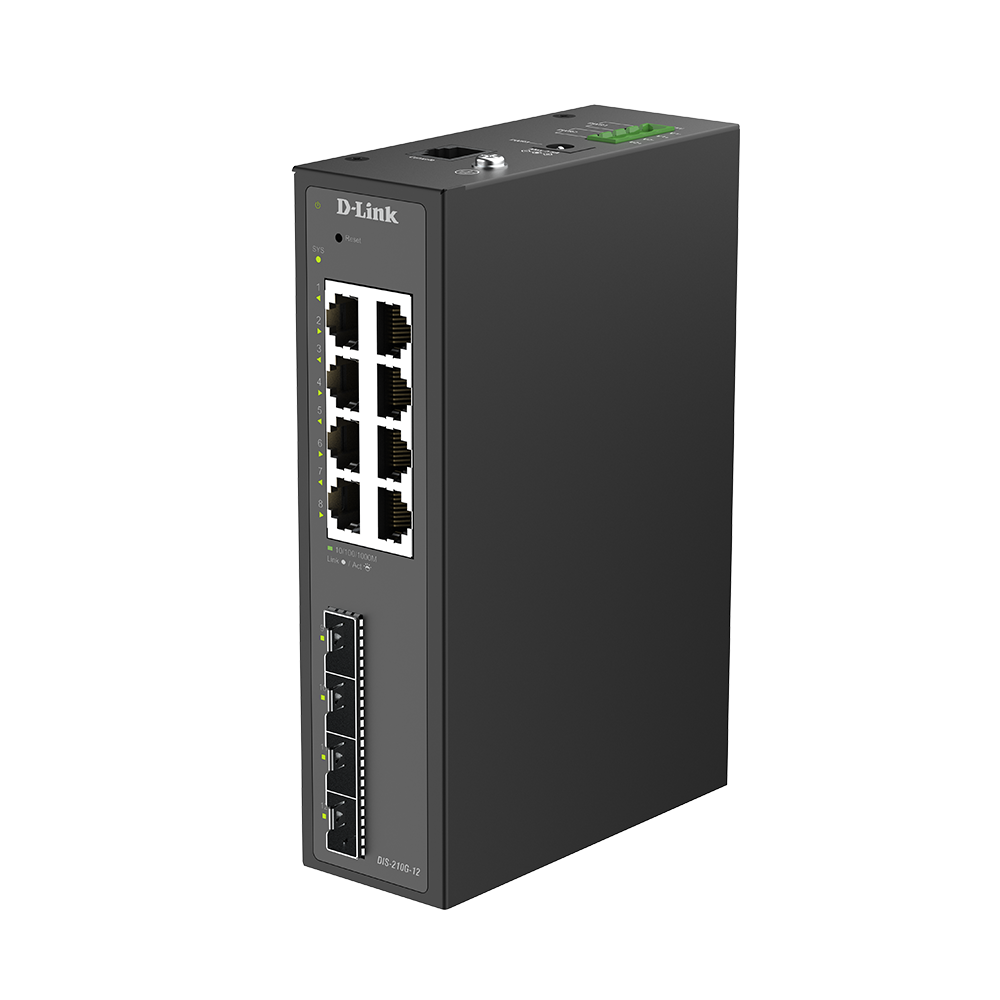

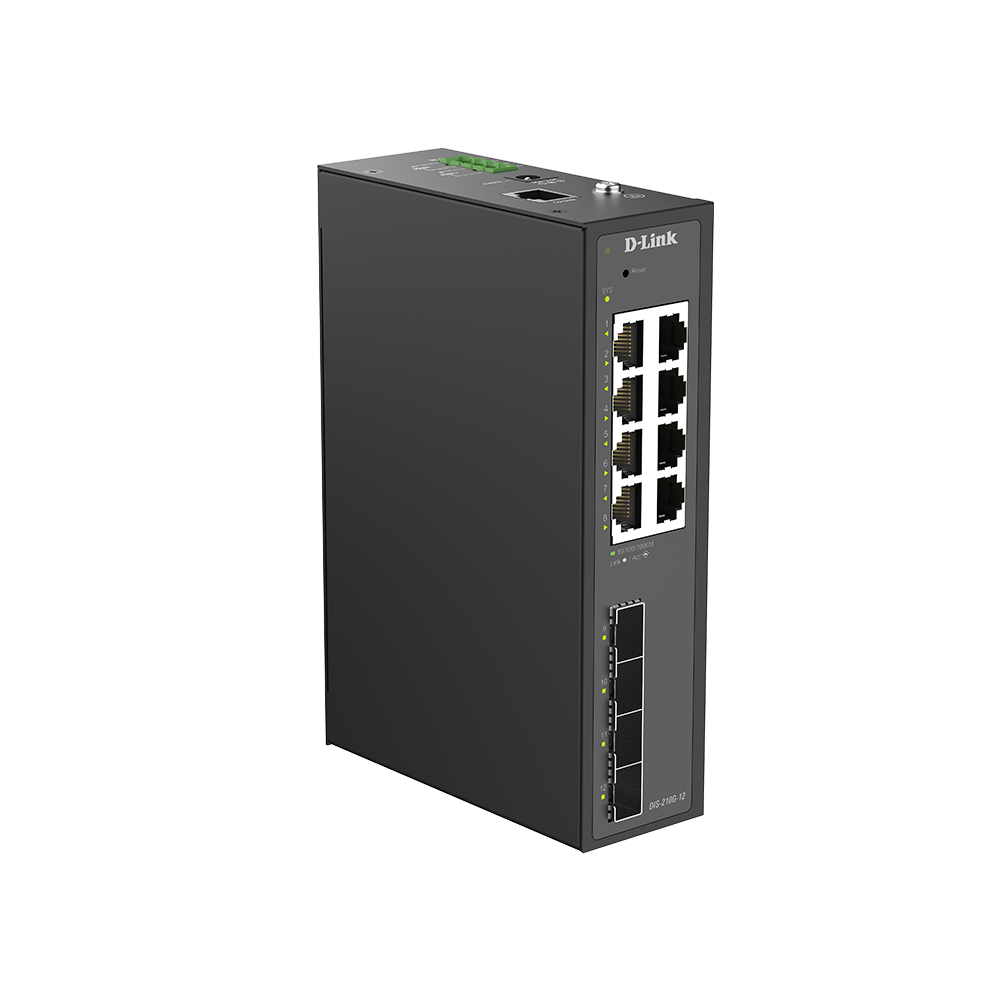

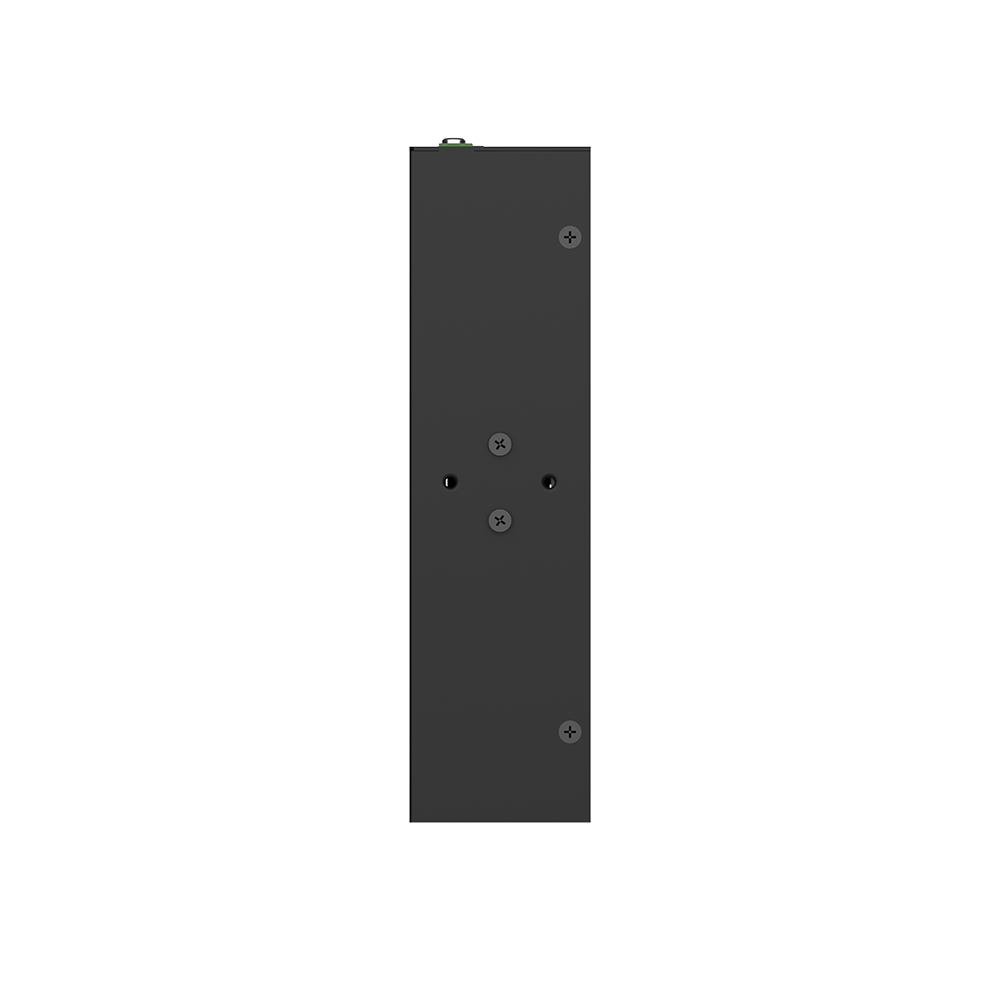

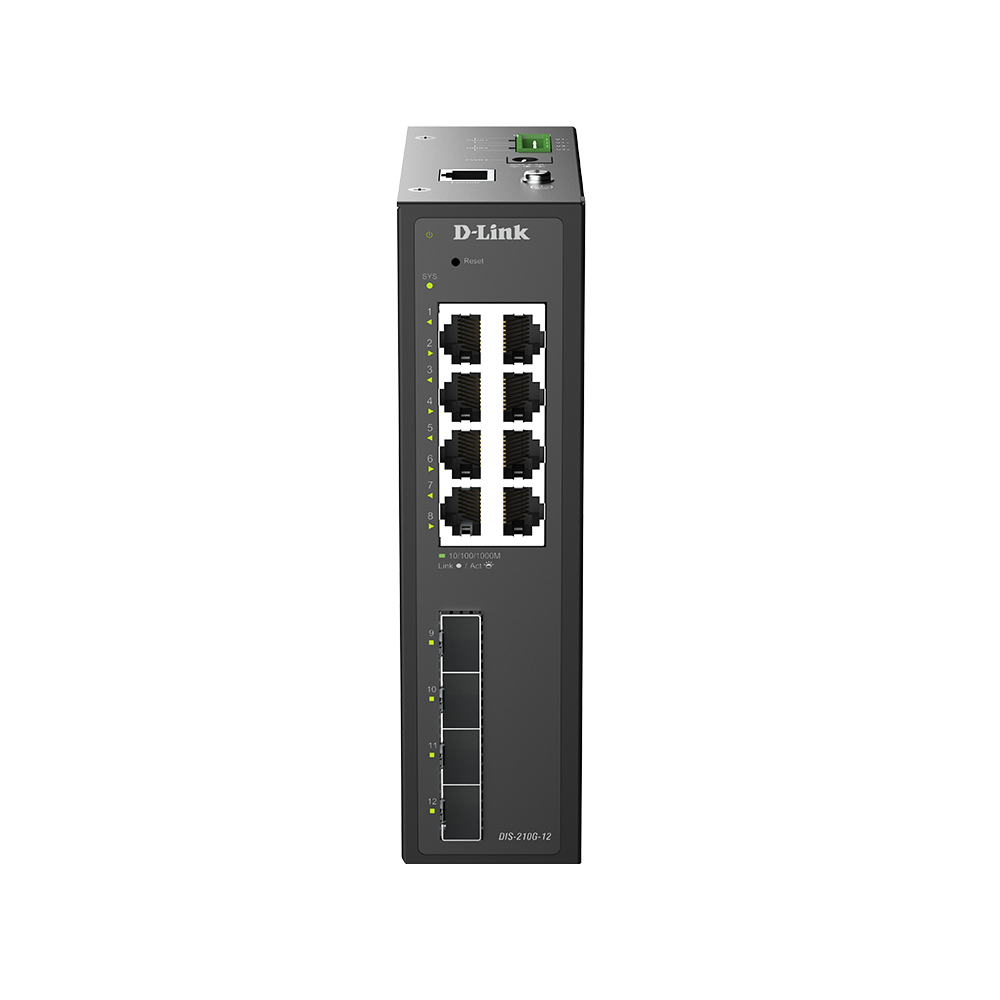

12-Port Gigabit Industrial Smart Managed Switch with 8 1000BASE-T ports and 4 SFP ports
DIS-210G-12
- 8 1000BASE-T ports and 4 SFP ports
- Robust and High-Redundancy Design
- DIN Rail mountable
- Fanless, passive cooling design
- High EMC endurance
- 6 kV surge protection on copper ports
- Dual power input for redundant power supplies
- Advanced networking features
- Ethernet Ring Protection Switching (ERPS)
Fibre Interface
Offers high performance with low latency and reliable long-distance fiber connectivity
Dual Power Input
Dual power supply redundancy minimises downtime and boosts system reliability
Fanless
Minimises the risk of component failure and lowers maintenance and downtime costs
Reliable Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Operations Administration and Maintenance (OAM)
Enables real-time performance monitoring, proactive maintenance, and simplified network management
Ethernet Ring Protection Switching (ERPS)
ERPS ensures fast recovery, reliable connectivity, and seamless network restoration
Efficient, Resilient, and Agile
The DIS-210G-12 comes with four 1G SFP ports to extend transmission distances, enabling seamless aggregation of smaller networks into a unified system.
With static routing support, it boosts performance and simplifies management. By streamlining routing and improving overall efficiency, it enhances network resilience, helping IT professionals deliver more reliable, high-quality services.
Fast Recovery,
Continuous Service
The DIS-210G-12 combines ERPSv1/v2 and Operations, Administration, and Maintenance (OAM) to deliver a highly resilient and easy-to-manage network. ERPS ensures redundant backup paths, preventing loops and providing rapid failover with fault recovery as fast as 50ms. OAM includes a function set (Y.1731, 802.1ag, 802.3ah) that continuously monitors physical connections and virtual circuits, helping network administrators quickly identify issues. Together, these features enhance network reliability, minimise downtime, and maintain a consistent, high-quality service experience.

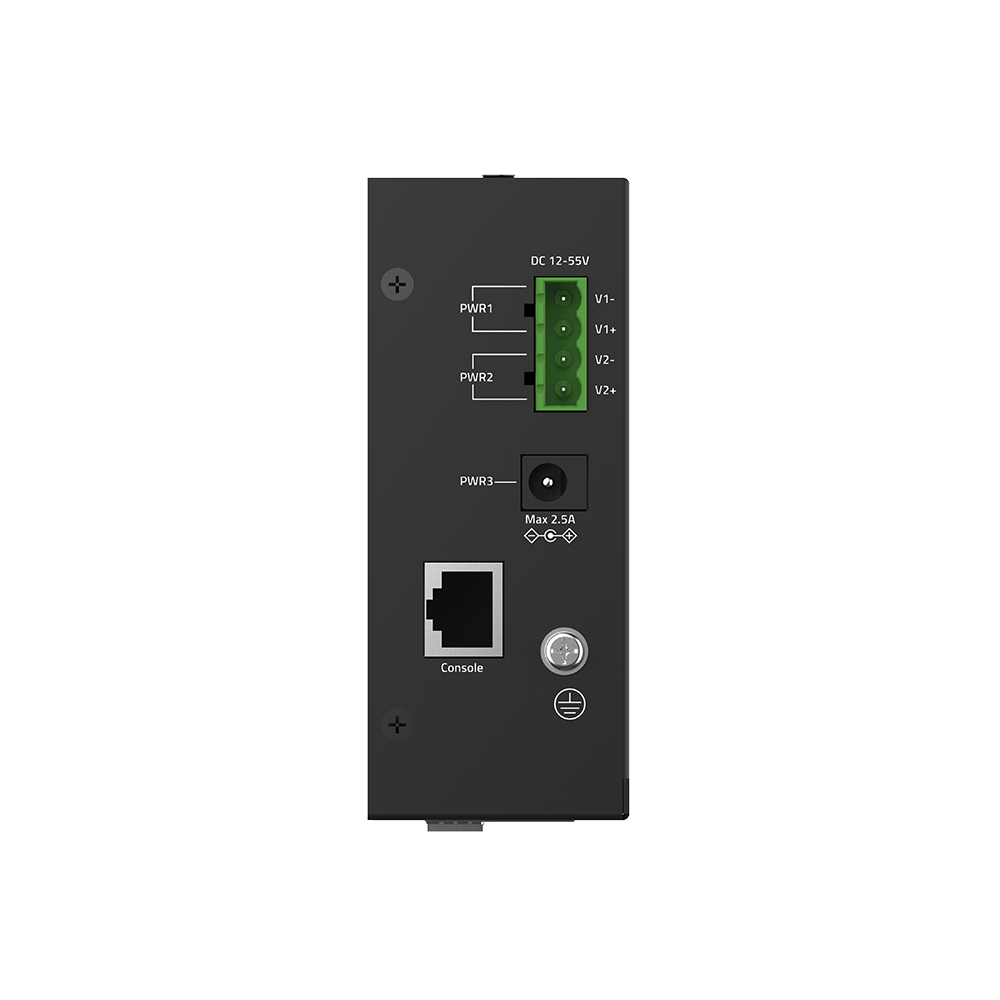

Uninterrupted Power
Redundancy
The DIS-210G-12 supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimises shutdown risk and maintains network performance.
Wide Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-reverse Protection
Firm Connection
Built Tough for Demanding Conditions
The DIS-210G-12 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

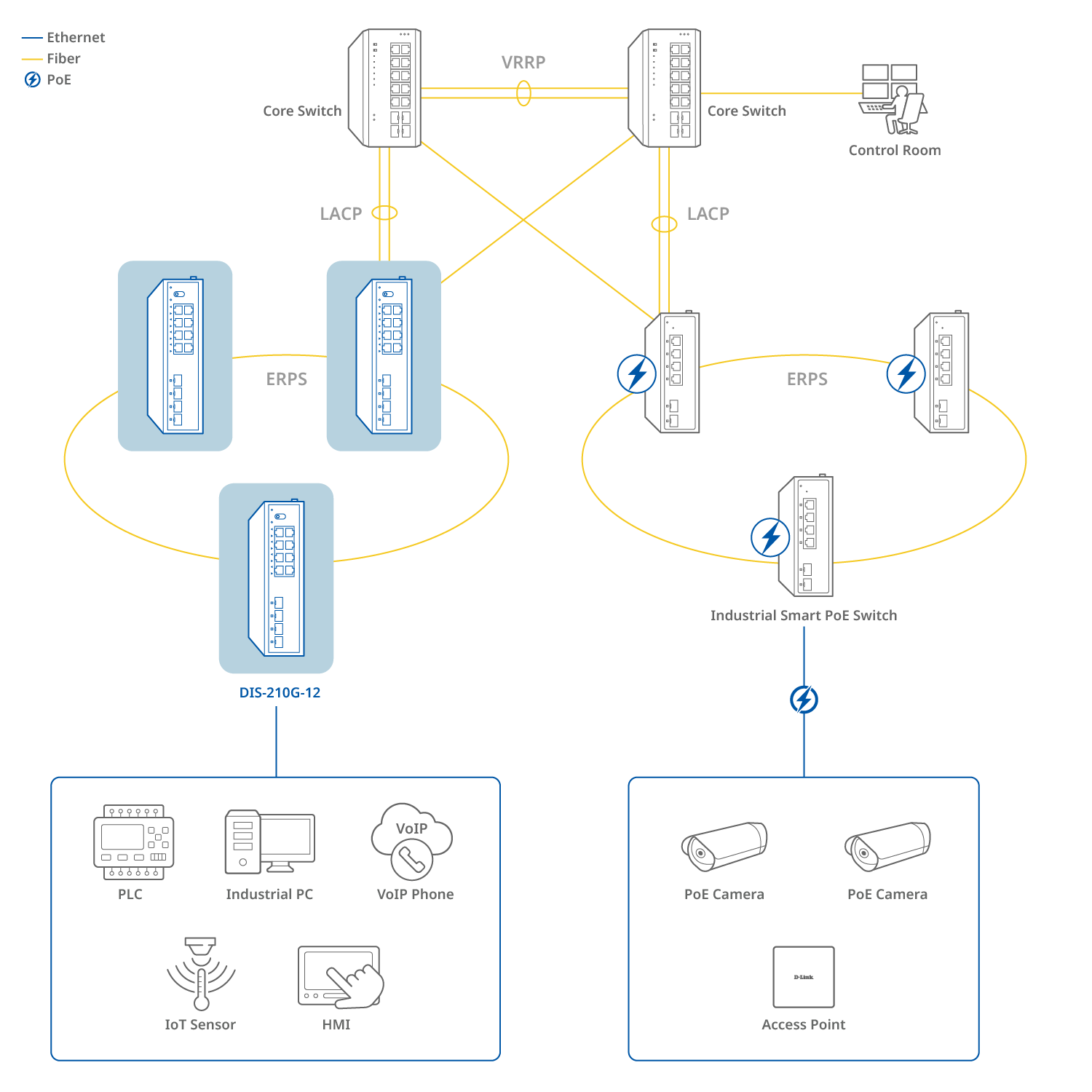

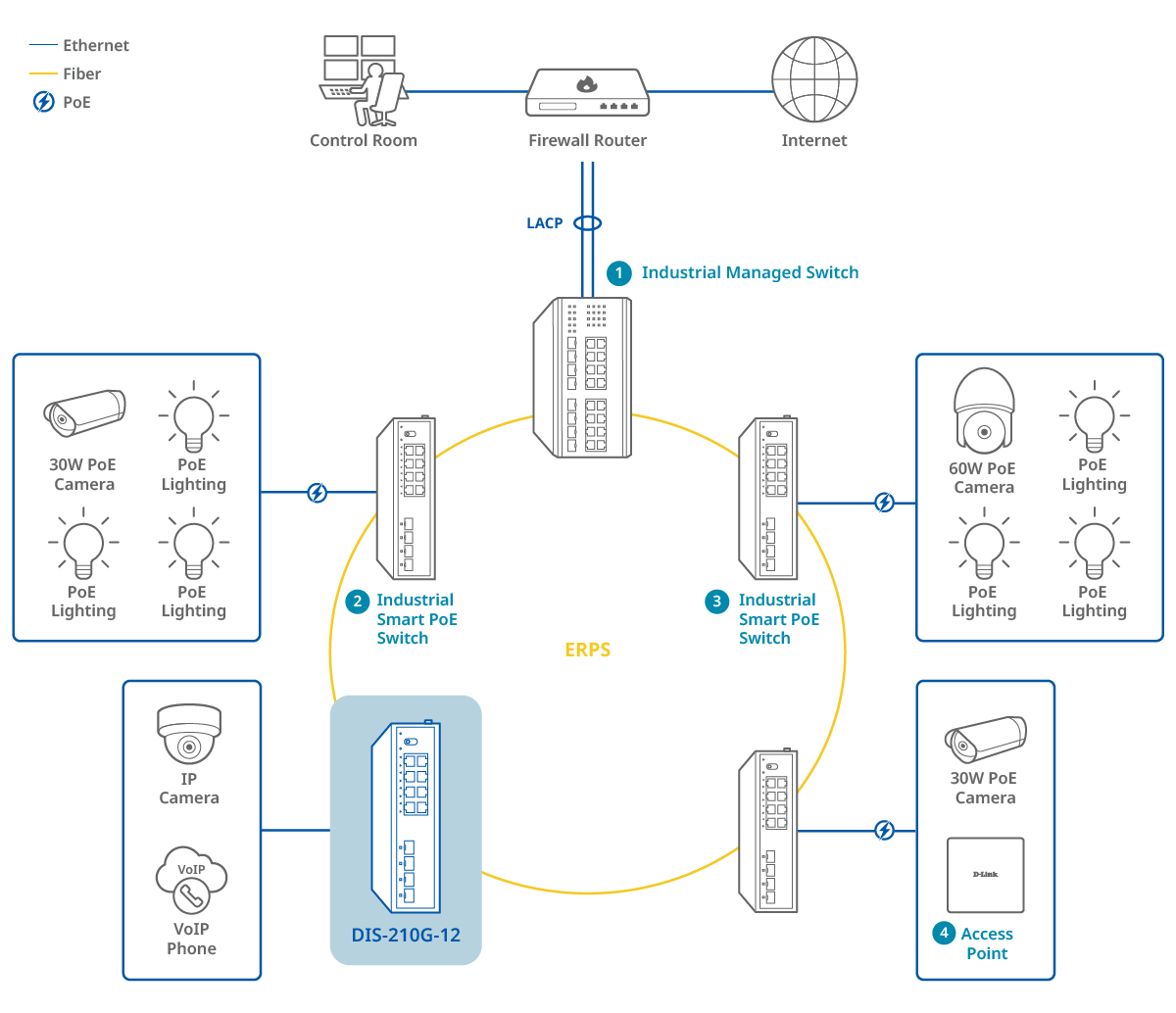

Connection Diagram
The DIS-210G-12 is an industrial smart switch equipped with eight 1G ports and four 1G SFP ports for network management and aggregation. The SFP ports support long-distance data transmission, rapid failover redundancy, and throughput aggregation. The DIS-210G-12 supports ERPS and static routing, which reduces latency, enables effective traffic control, and improves network scalability and efficiency.

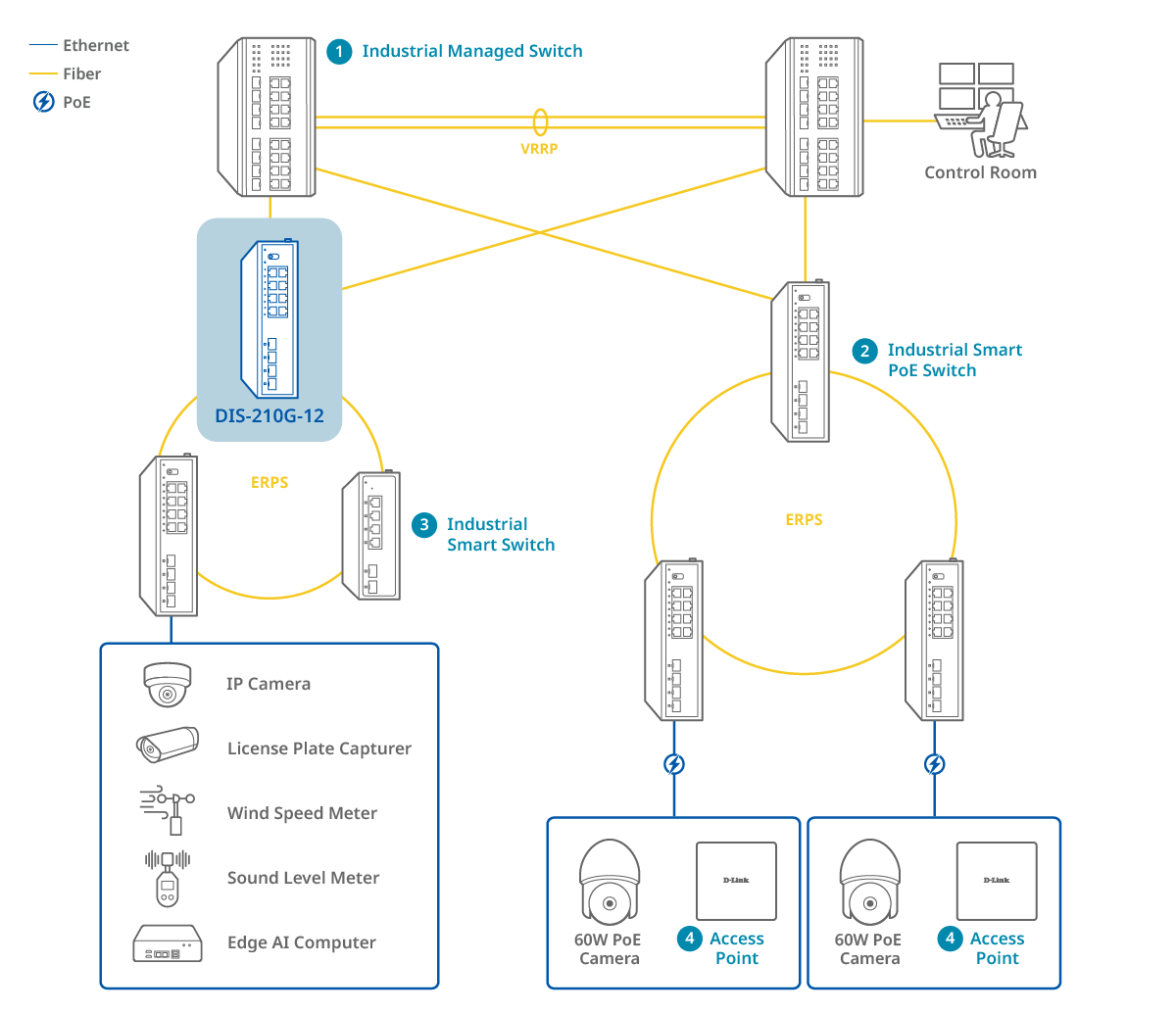

Application
Industrial Automation
User benefits :
- Delivers high-speed connectivity across areas without signal loss
- Durable casing for an extreme and harsh factory environment
- Wide voltage provides greater power flexibility for deployment
- ERPS ring ensures continuous monitoring even if a link fails
- Easy monitoring and maintenance through smart management
Learn more :
- Industrial Managed Switch: DIS-310G-24X
- Industrial Smart PoE Switch: DIS-210G-12UP
- Industrial Smart PoE Switch: DIS-210G-12UP
- Access Point: DAP-X3060
City Surveillance
User benefits :
- Fibre uplinks ensure long-distance connectivity
- 6kV keeps devices safe from lightning-induced spikes
- Industrial-grade design for hardened environments
- ERPS ring ensures continuous monitoring even if a link fails
- Smart management for simple and efficient control
Learn more :
- Industrial Managed Switch: DIS-310G-24X
- Industrial Smart PoE Switch: DIS-210G-12UP
- Industrial Smart Switch: DIS-210G-12
- Access Point: DAP-X3060OU
| 1000BASE-T Ports : | 8 |
| SFP Ports : | 4 |
| PoE Type Required : | None |
| Switching Capacity : | 24 Gbps |
| MAC Address Table Size : | 8K |
| Metal Housing : | Yes |
| DIN Rail Mountable : | Yes |
| Power Input : | 12 to 55V DC terminal block dual input |
| Fans : | Fanless |
| Operating Temperature : | From -40° to 75°C |
| Surge Protection : | 6 kV Surge Protection |
| Management Options : | Smart Managed |
| Switch Series : | DIS Industrial Series |
