5-Port Gigabit PoE-Powered Smart Managed Switch with 2 PoE pass-through ports


  • PoE powered switch with 5 Gigabit ports
  • PoE extender with 2 PoE pass-through ports
  • Fanless design for quiet operation
  • User friendly Web interface
  • Advanced networking features for SMB

RRP NZ$169.99

Business Solutions / Switching / Smart Switches / 5-Port Gigabit PoE-Powered Smart Managed Switch with 2 PoE pass-through ports

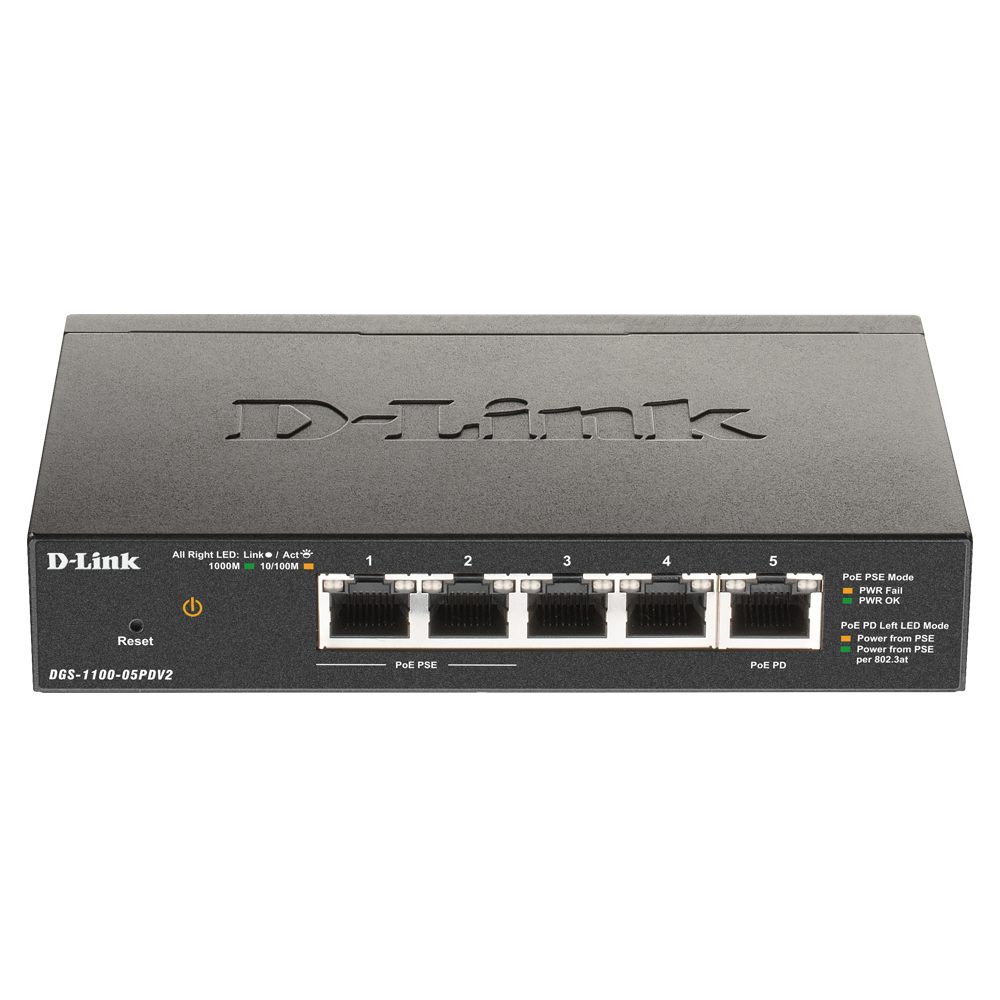

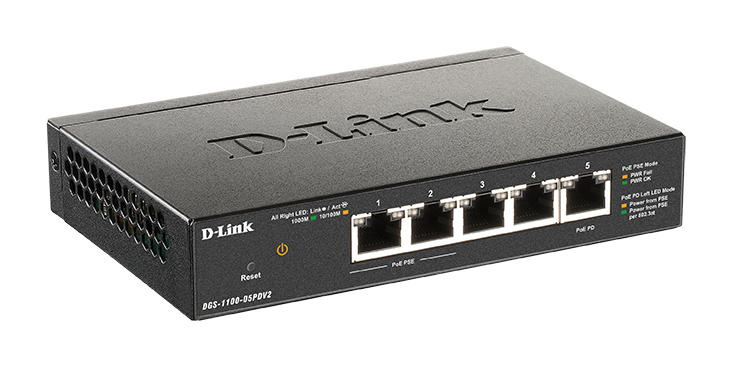

The DGS-1100-05PDV2 is a unique 5-port switch powered through the network cable by an upstream PoE power source (PoE switch or injector). As a “PoE extender”, it also has the ability to propagate (pass-through) PoE power further downstream to one or two Powered Devices (PDs). It comes in a compact desktop-sized metal case with fanless design for silent operation. Advanced management features, diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to suit your networking requirements.

Powered by PoE


The DGS-1100-05PDV2 is powered by a PoE switch or PoE injector that can be located up to 100m away. As such, this device is intended for applications where a small 5-port Gigabit switch is required but AC power is not close by. The upstream PoE source may support either 802.3af or 802.3at. One switch port is used for the power input (port 5) and the other four ports are available as standard 10/100/1000 ports for networked devices, such as PCs, printers, etc.

PoE Extender


The DGS-1100-05PDV2 switch can also “pass-through” PoE power to one or two downstream PDs (such as IP Cameras, IP Phones, Wireless APs). The PoE pass-through capability makes the DGS-1100-05PDV2 ideal for IP Surveillance networks when cameras are located beyond 100m from the main PoE switch. As an additional benefit, because the switch is smart-managed, an administrator can control various PoE functions through the user interface, such as remotely rebooting cameras or access points, from anywhere on the network.

Auto Surveillance/Voice VLAN and Bandwidth Control


The DGS-1100-05PDV2 supports Auto Surveillance VLAN (ASV) which ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The DGS-1100-05PDV2 also supports Auto Voice VLAN, which is best suited for VoIP deployments. This enhances the VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or have high priority.

Built to Last


The DGS-1100-05PDV2 comes in a compact metal enclosure. It can be wall mounted or placed on a desktop. It has no fans so it operates silently. Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), it consumes less energy by cutting down on power consumption when port utilization is low.

Switch Type :Layer 2
Type of Port Required :Gigabit Copper
Number of Ports :5 - 16
PoE Type Required :PoE|PoE+
High Speed Stacking :No
Design :Desktop|Fanless
1000Base-T ports :5 Ports
PoE ports :2 PoE Pass-through Ports
PoE Budget :18 Watts (when powered with 802.3at)
Switching Capacity :10 Gbps
QoS :Yes
Spanning Tree Protocol :Yes
Link Aggregation :Yes
VLAN :32 Groups
Surveillance VLAN :Yes
Jumbo Frame :9216 bytes
Voice VLAN :Yes
IGMP Snooping :Yes
Cable Diagnostics :Yes
Energy Saving Technology :EEE Compliant|D-Link Green
19" Rack Mountable :No
Fans :Fanless
Dimensions (Size) :150 x 97 x 28 mm
Web-based GUI :Yes
Command Line Interface :No
Types of ports :Gigabit Ports
Switch Series :DGS-1100 Series
