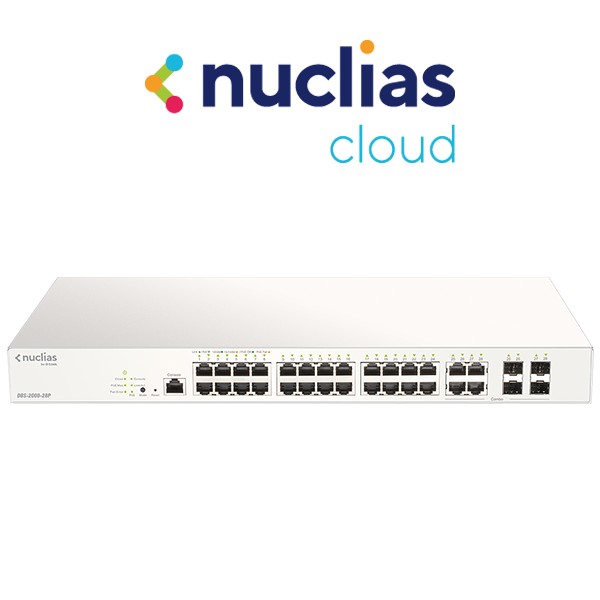

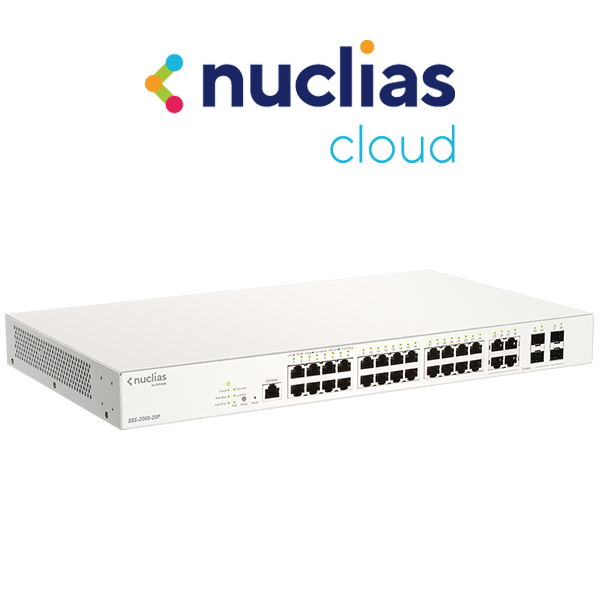

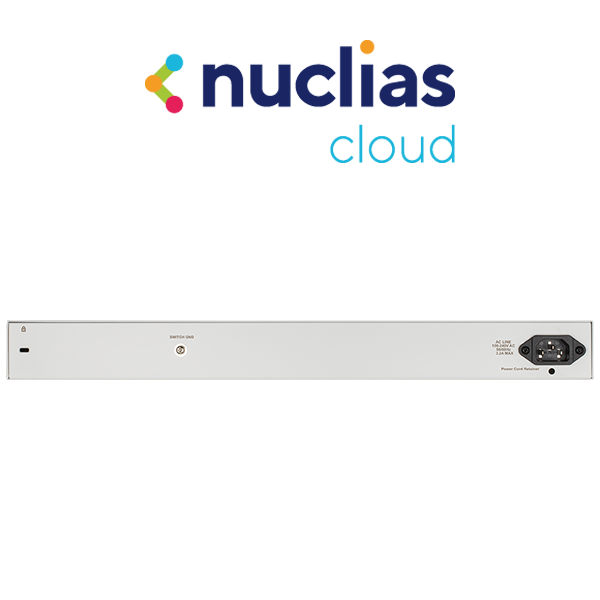

Nuclias Cloud-Managed 28-Port Gigabit 193W PoE switch with 28 RJ45 (24 PoE) and 4 Combo SFP ports


Powerful & flexible Cloud-Managed networking solution for Small-to-Medium-Sized Businesses (SMBs/SMEs).

  • 28 x 10/100/1000BASE-T ports (24 PoE)
  • 4 x SFP ports (Combo)
  • 193W PoE power budget
  • Supports IEEE 802.3at PoE
  • Zero-Touch Deployment
  • Cloud Management w/99.9% SLA
  • Innovative D-Link Green Energy-saving features
  • Intuitive Web Portal for comprehensive switch management
  • Multilingual Support

RRP NZ$1249.99

Business Solutions / Nuclias / Nuclias Cloud Managed Switches / Nuclias Cloud-Managed 28-Port Gigabit 193W PoE switch with 28 RJ45 (24 PoE) and 4 Combo SFP ports

Cloud Networking, Refreshed

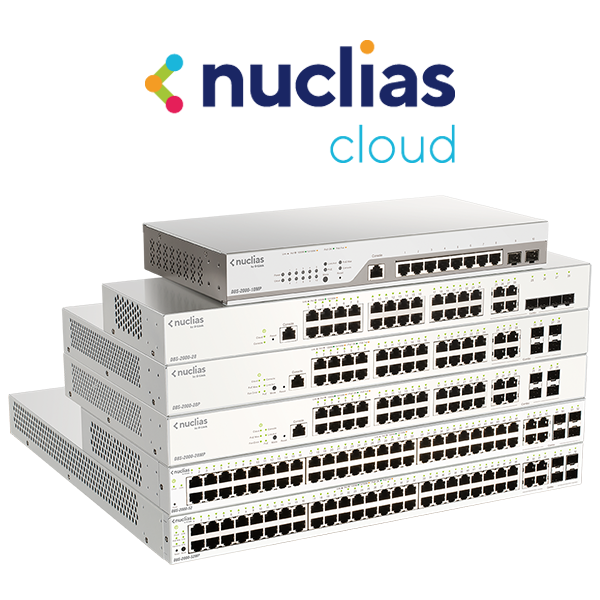

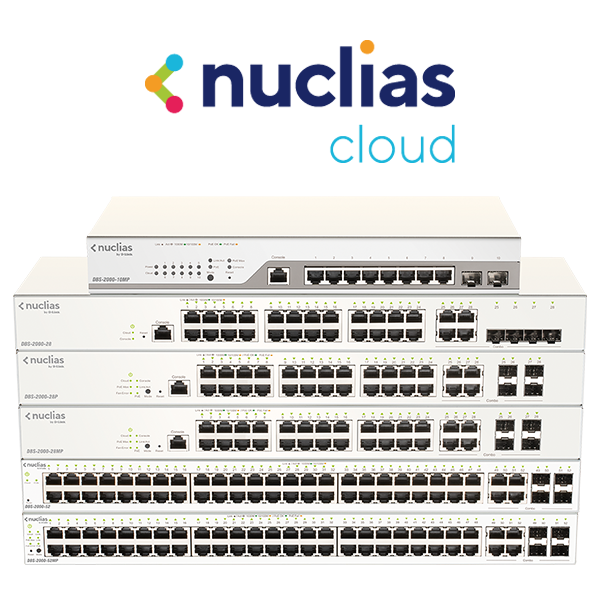

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Nuclias Products

Nuclias cloud-based network management Manage your network from one place from a browser or through the tablet app, anywhere, anytime.
Zero-Touch Provisioning Zero-Touch Provisioning Plug and play, cloud-based
Unlimited scalability Unlimited scalability Easy to add or scale back in line with demand.
Intuitive web and app-based interface Intuitive web and app-based interface Easy to use, multi-lingual user interface.
Fibre Fibre SFP ports for fibre transceivers.
IPv6 Ready IPv6 Ready Connect with the latest protocol.
VLAN VLAN For secure networking.
PoE PoE PoE and PoE+ capable with extended PoE budget.

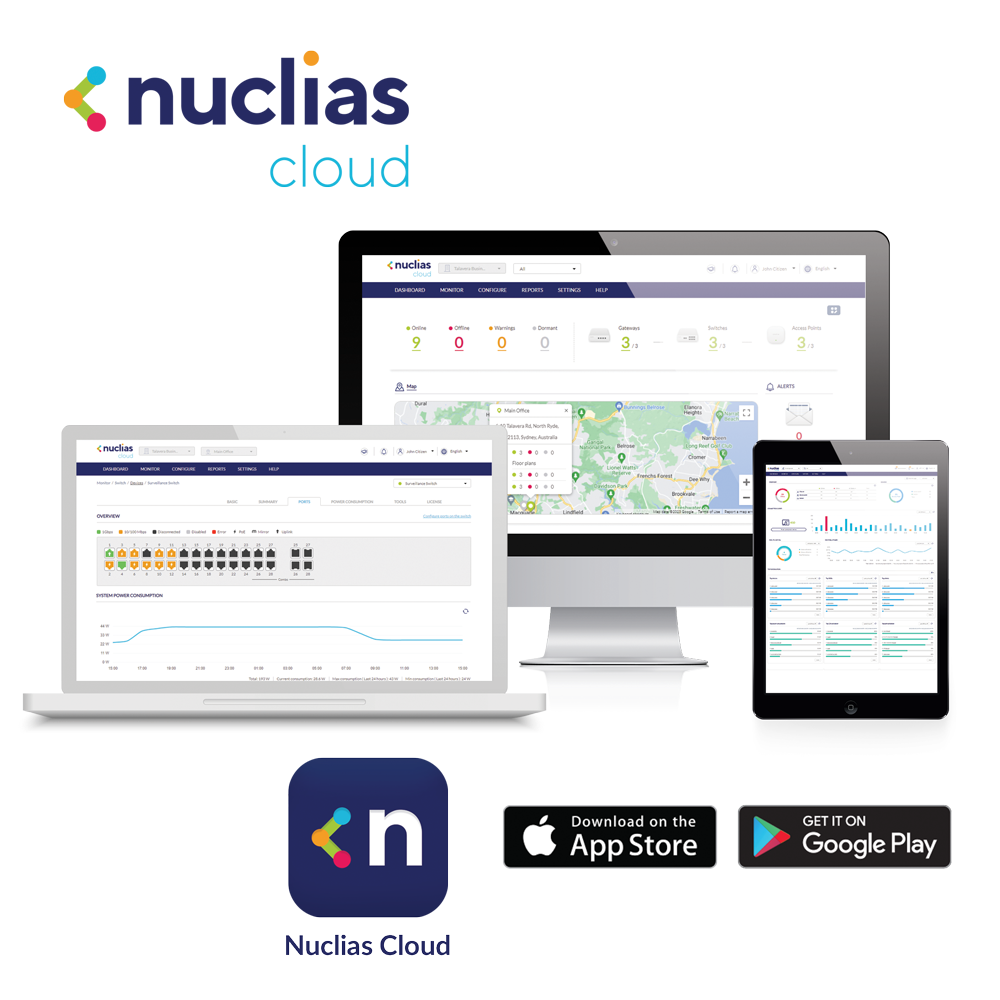

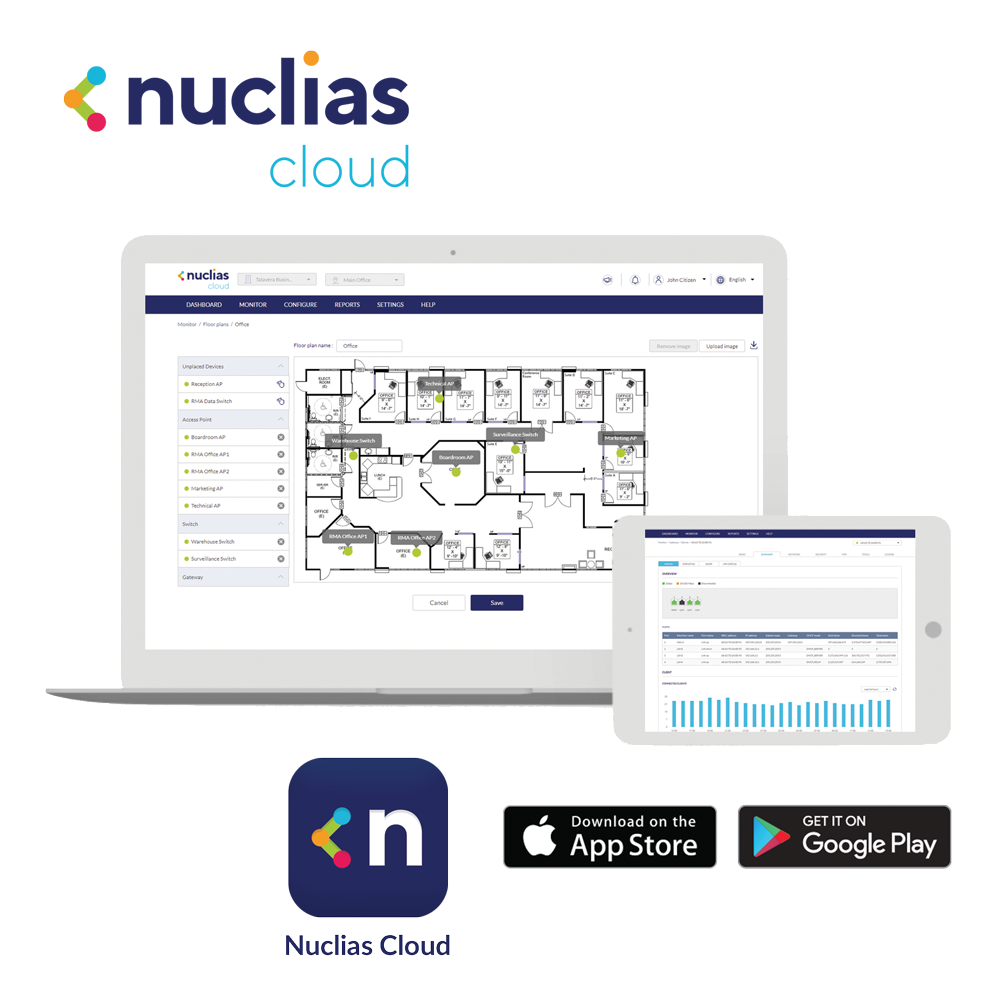

Management Over the Cloud

Management Over the Cloud

DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting

The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

easy troubleshooting

Advanced Security Features

The DBS-2000 series utilises the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

Full PoE Support

Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.

Full FoE Support




802.1X Access Control :Yes
Types of ports :Gigabit Ports
Built-in PSU :Yes
Management Options :Cloud Managed
Number of Ports :24 - 28
PoE Type Required :PoE|PoE+
Design :Desktop|Rackmountable
Cable Diagnostics :Yes
DHCP Server Screening :Yes
Dimensions (Size) :440 x 250 x 44 mm
Energy Saving Technology :RoHS 6 Compliant
Fans :2
IGMP Snooping :Yes
Jumbo Frame :9K
Link Aggregation :Yes
Nuclias Product :Yes
PoE Budget :193 Watts
PoE ports :24 Ports
QoS :Yes
19" Rack Mountable :Yes
SFP ports :4 Ports (Combo)
Spanning Tree Protocol :Yes
Switching Capacity :56 Gbps
1000Base-T ports :28 ports
VLAN :256 Groups
Voice VLAN :Yes
