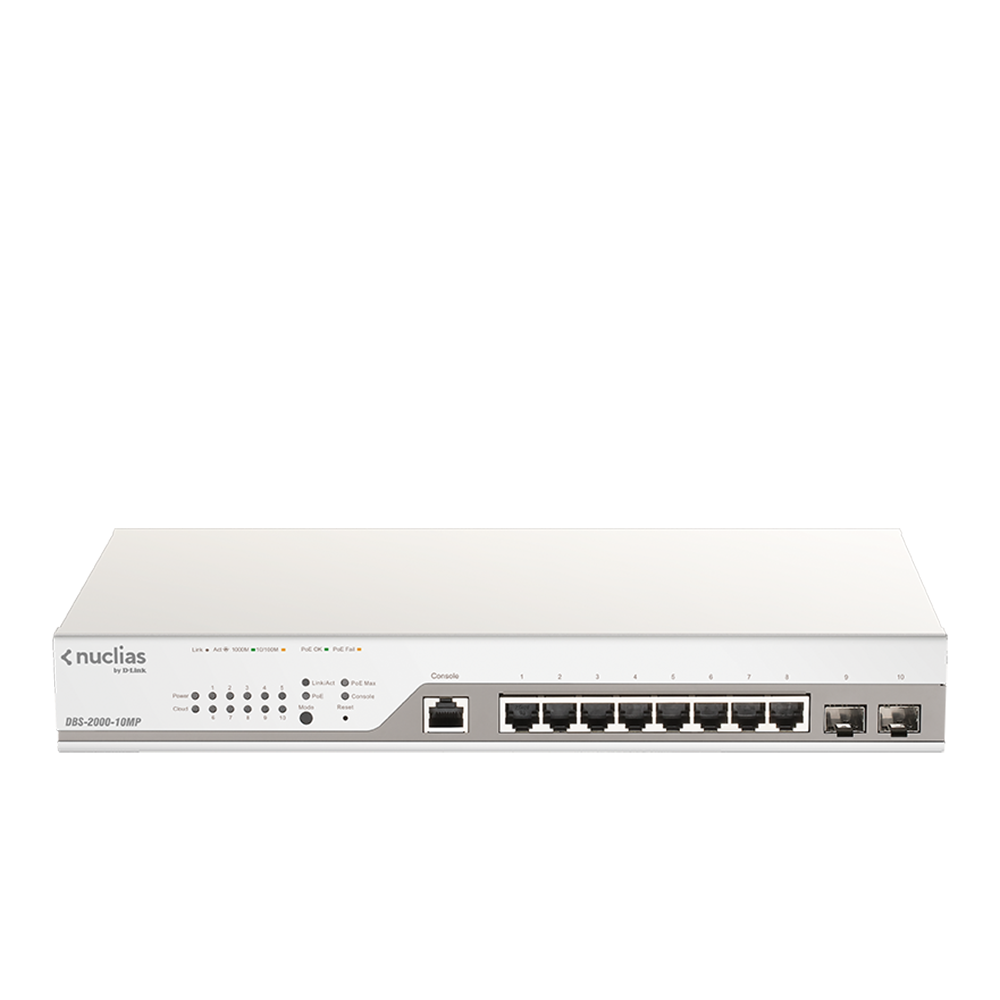

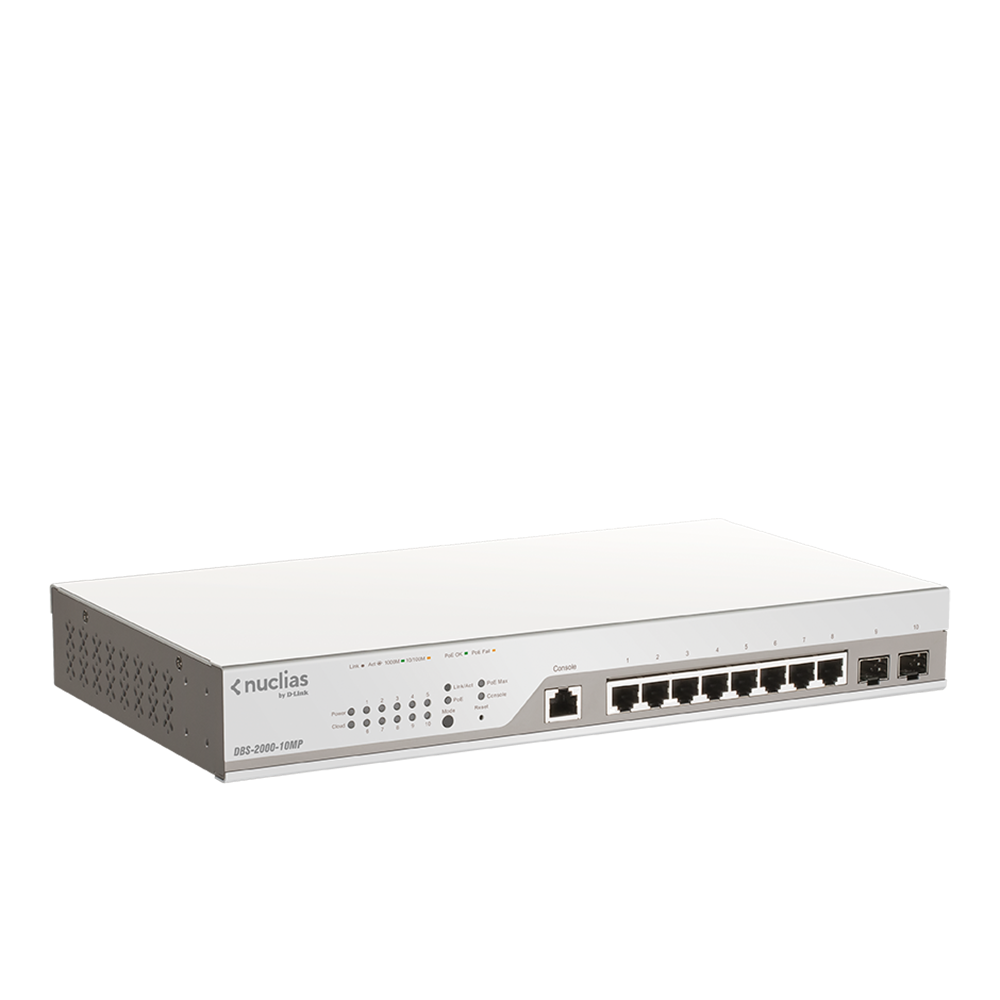

Nuclias Cloud-Managed 10-Port Gigabit 130W PoE switch with 8 PoE RJ45 and 2 SFP ports
DBS-2000-10MP
Powerful & flexible Cloud-managed networking solution for Small-to-Medium-Sized Businesses (SMBs/SMEs).
- 8 x 10/100/1000BASE-T PoE ports
- 2 x SFP ports
- 130W PoE power budget
- Supports IEEE 802.3at PoE
- Zero-Touch Deployment
- Cloud Management w/99.9% SLA
- Innovative D-Link Green Energy-saving features
- Intuitive Web Portal for comprehensive switch management
- Multilingual Support
Cloud Networking, Refreshed

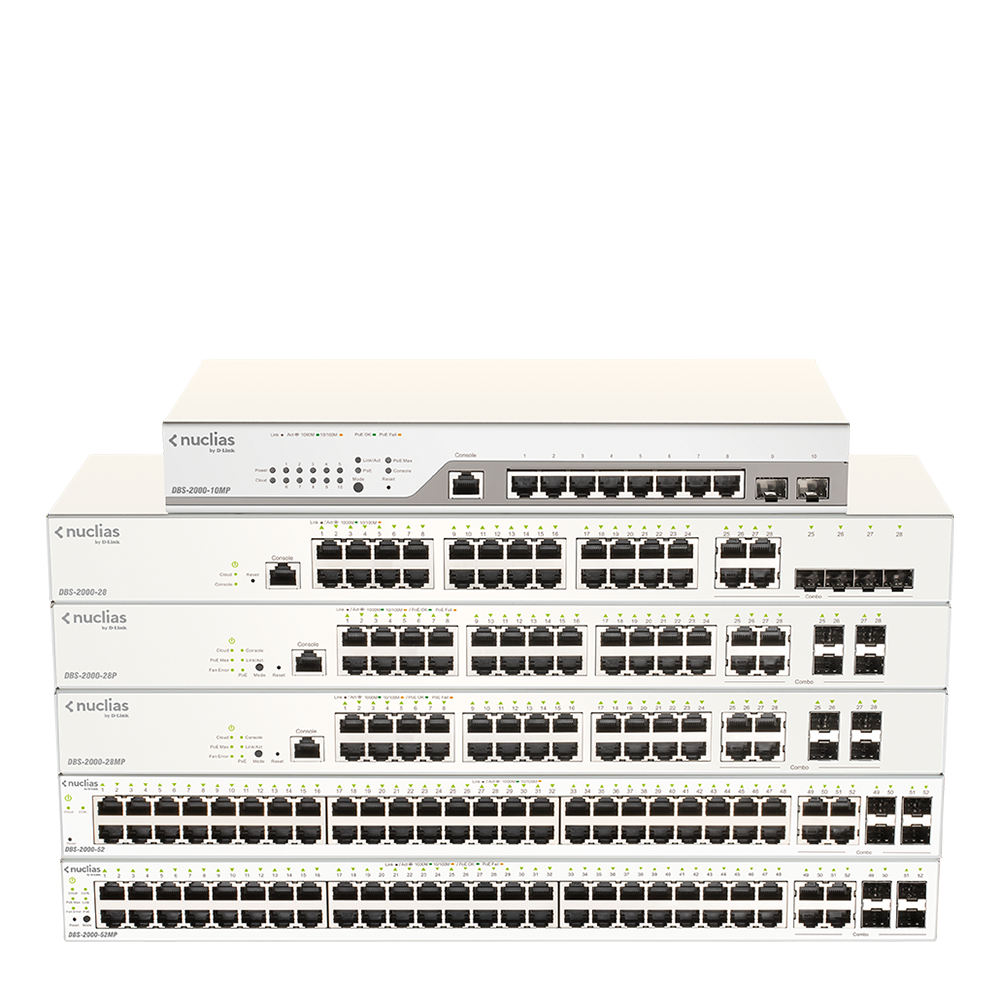

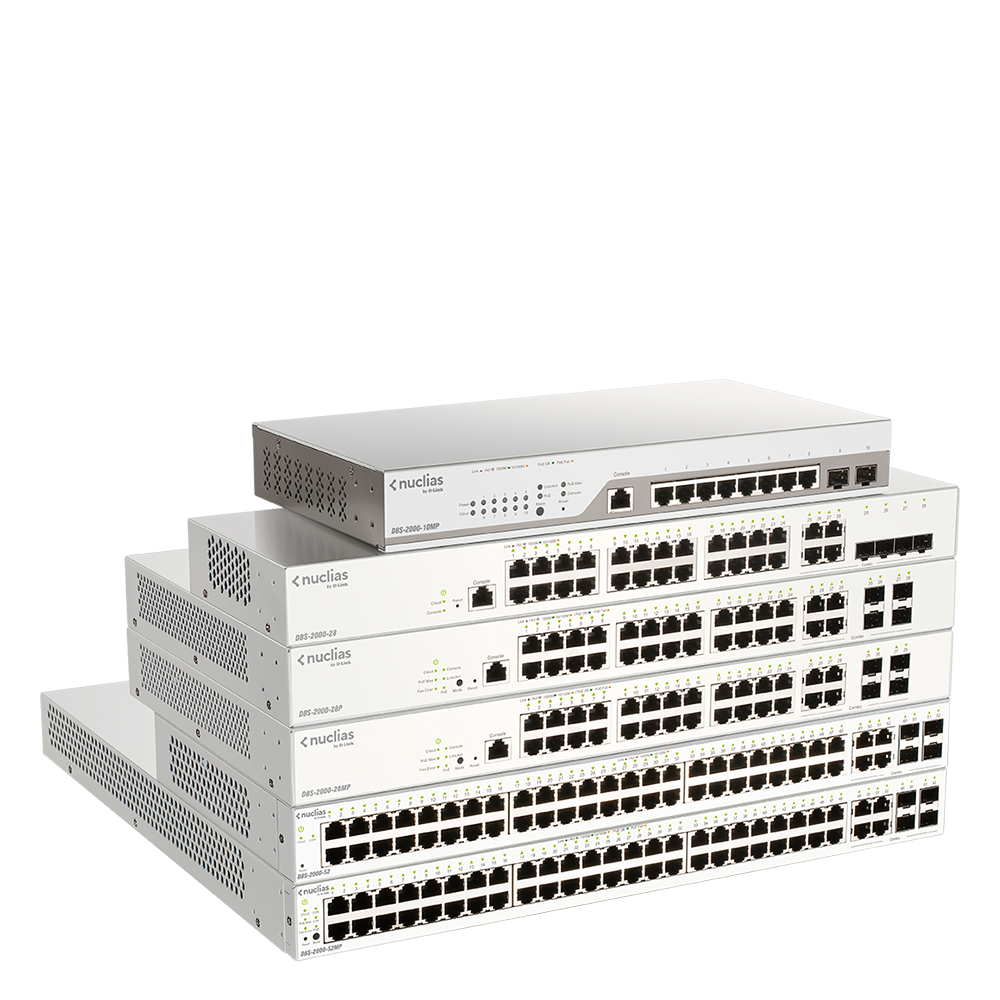

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Nuclias Products

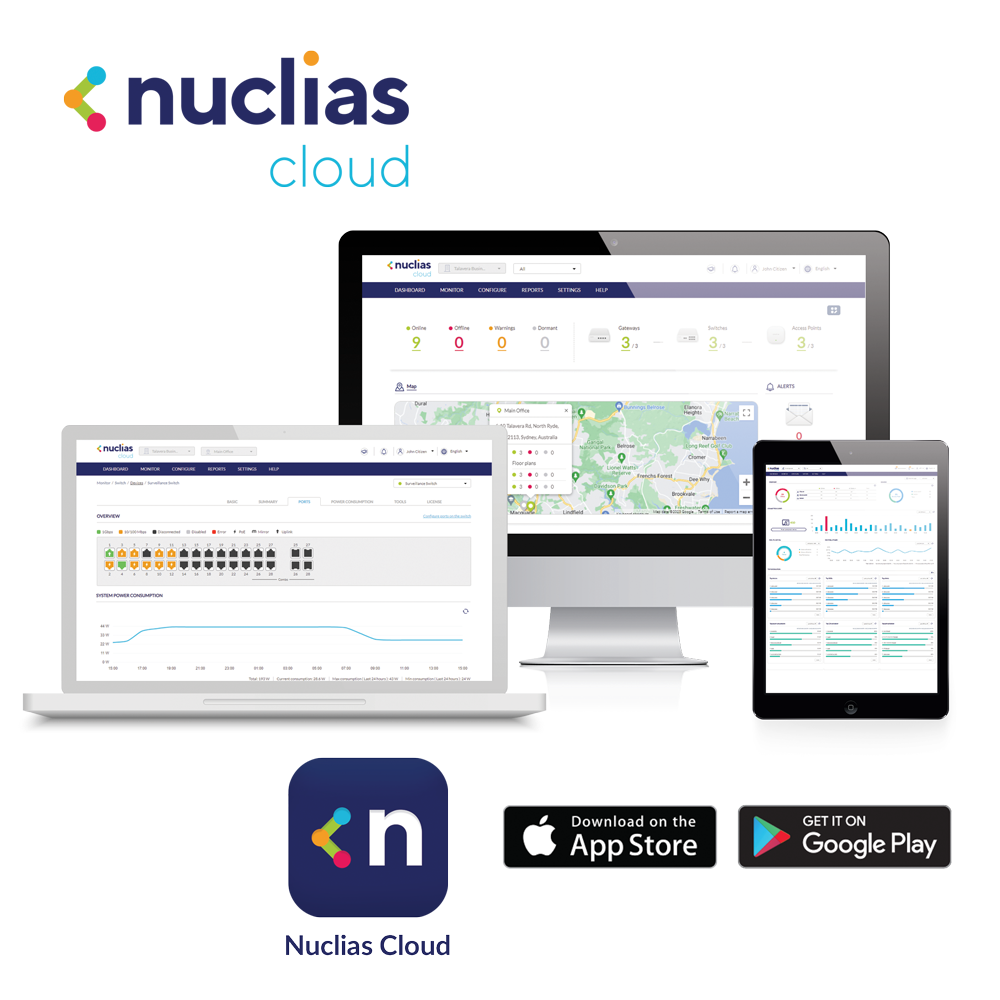

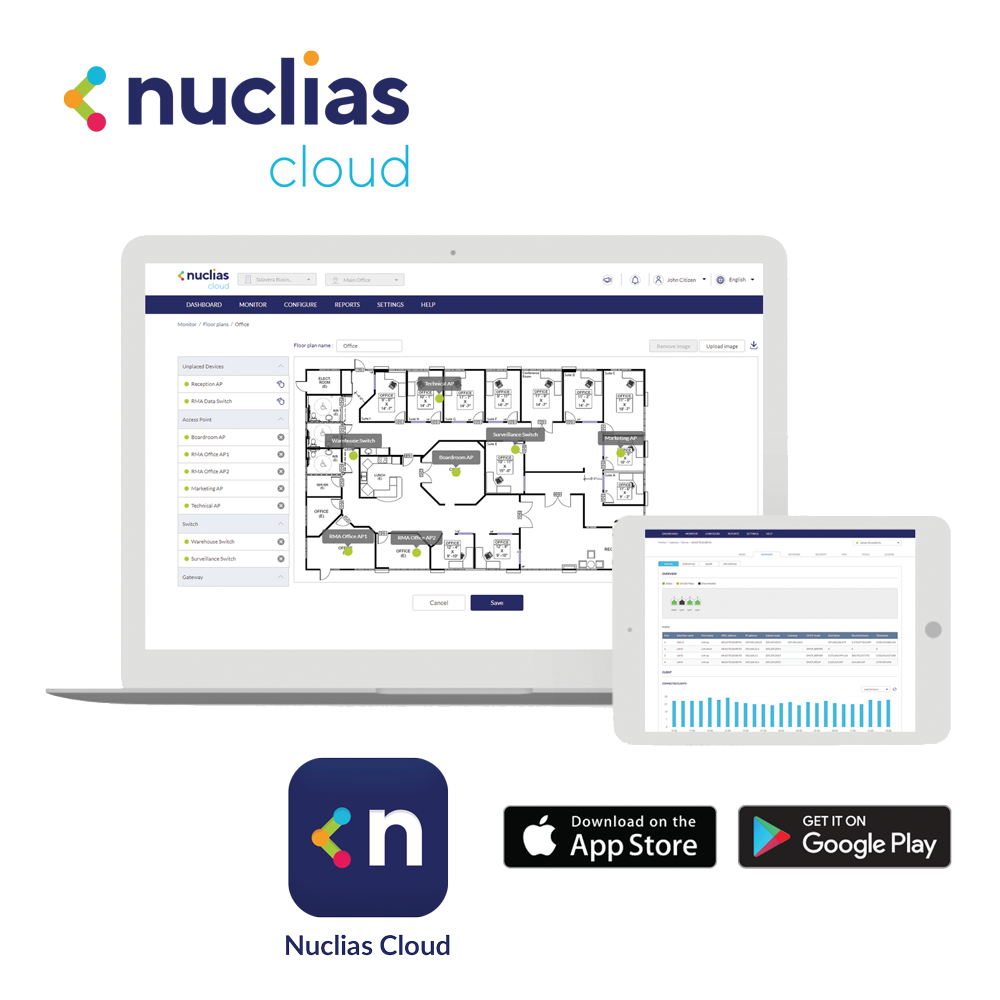

Nuclias cloud-based network management Manage your network from one place from a browser or through the tablet app, anywhere, anytime.
Zero-Touch Provisioning Plug and play, cloud-basedauto-configuration.
Unlimited scalability Easy to add or scale back in line with demand.
Intuitive web and app-based interface Easy to use, multi-lingual user interface.
Fibre SFP ports for fibre transceivers.
IPv6 Ready Connect with the latest protocol.
VLAN For secure networking.
PoE PoE and PoE+ capable with extended PoE budget.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilises the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
Full PoE Support
Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
| 802.1X Access Control : | Yes |
| Types of ports : | Gigabit Ports |
| Built-in PSU : | Yes |
| Management Options : | Cloud Managed |
| Number of Ports : | 5 - 16 |
| PoE Type Required : | PoE|PoE+|Extended PoE Budget |
| Design : | Desktop|Rackmountable|Fanless |
| Cable Diagnostics : | Yes |
| DHCP Server Screening : | Yes |
| Dimensions (Size) : | 330 x 180 x 44 mm |
| Energy Saving Technology : | RoHS 6 Compliant |
| Fans : | Fanless |
| IGMP Snooping : | Yes |
| Jumbo Frame : | 9K |
| Link Aggregation : | Yes |
| Nuclias Product : | Yes |
| PoE Budget : | 130 Watts |
| PoE ports : | 8 Ports |
| QoS : | Yes |
| 19" Rack Mountable : | Yes |
| SFP ports : | 2 Ports |
| Spanning Tree Protocol : | Yes |
| Switching Capacity : | 20 Gbps |
| 1000Base-T ports : | 8 Ports |
| VLAN : | 256 Groups |
| Voice VLAN : | Yes |
