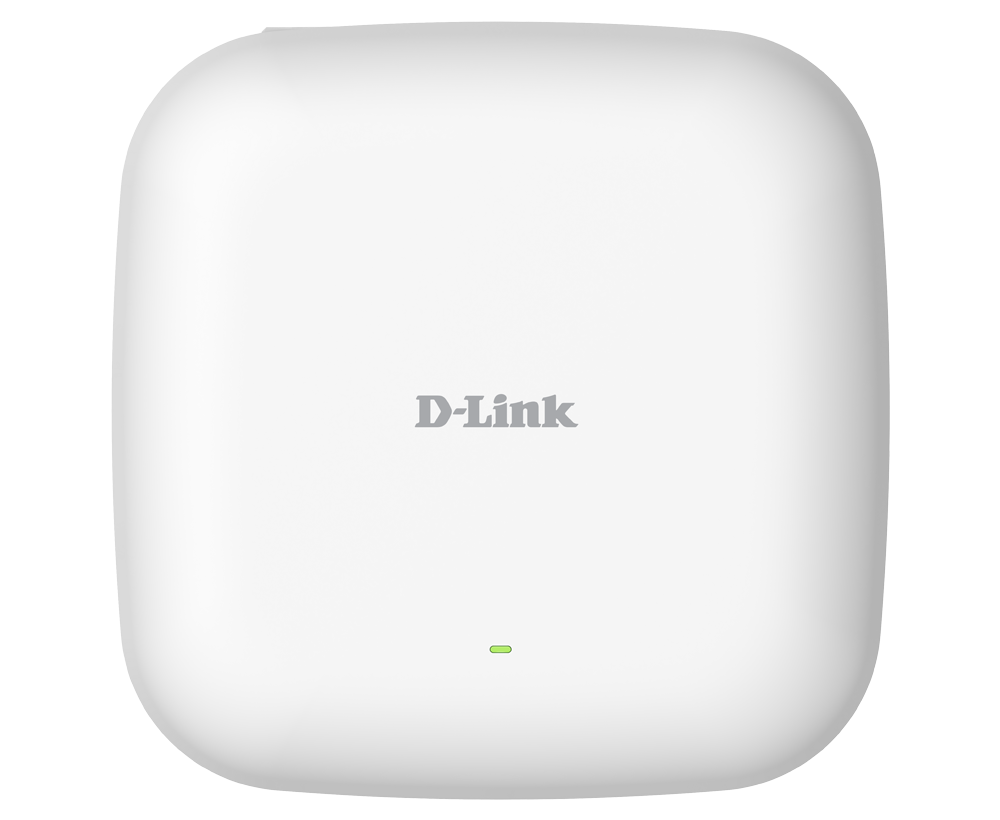

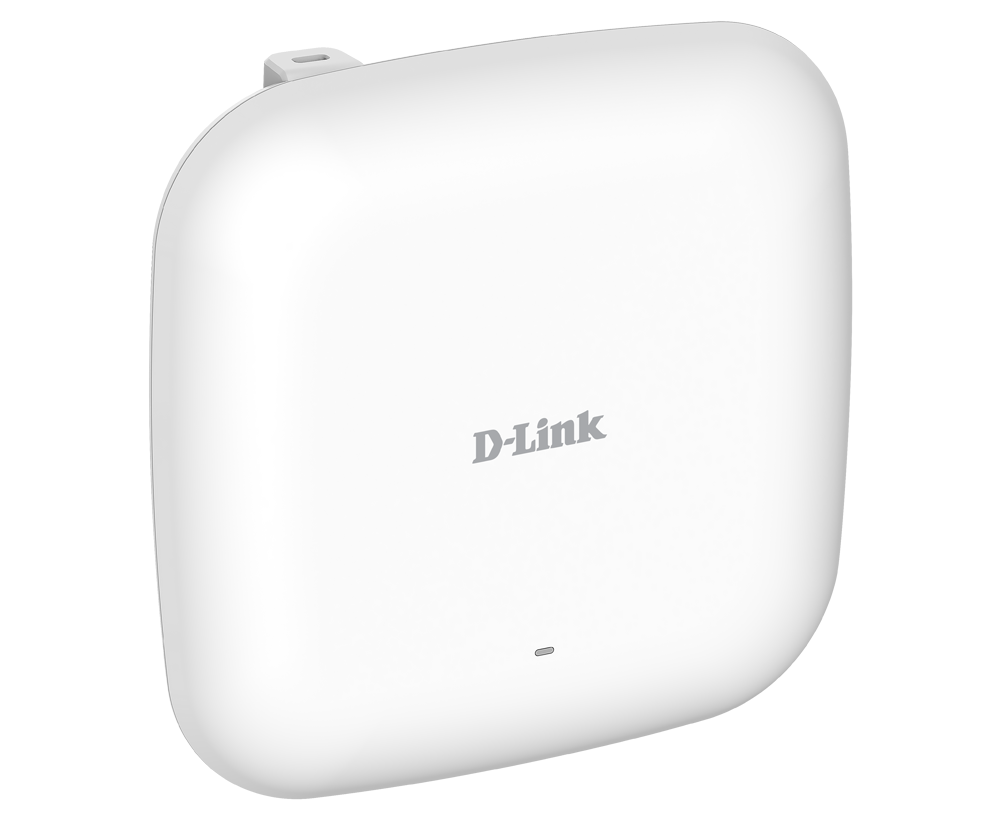

AX3000 Wi-Fi 6 Smart Office Series Access Point
DBR-X3000-AP
- Centralised management via DBR-700, DBR-600-P Smart Office Series Business Routers
- AX3000 Wi-Fi 6 – Speeds up to 3Gbps*

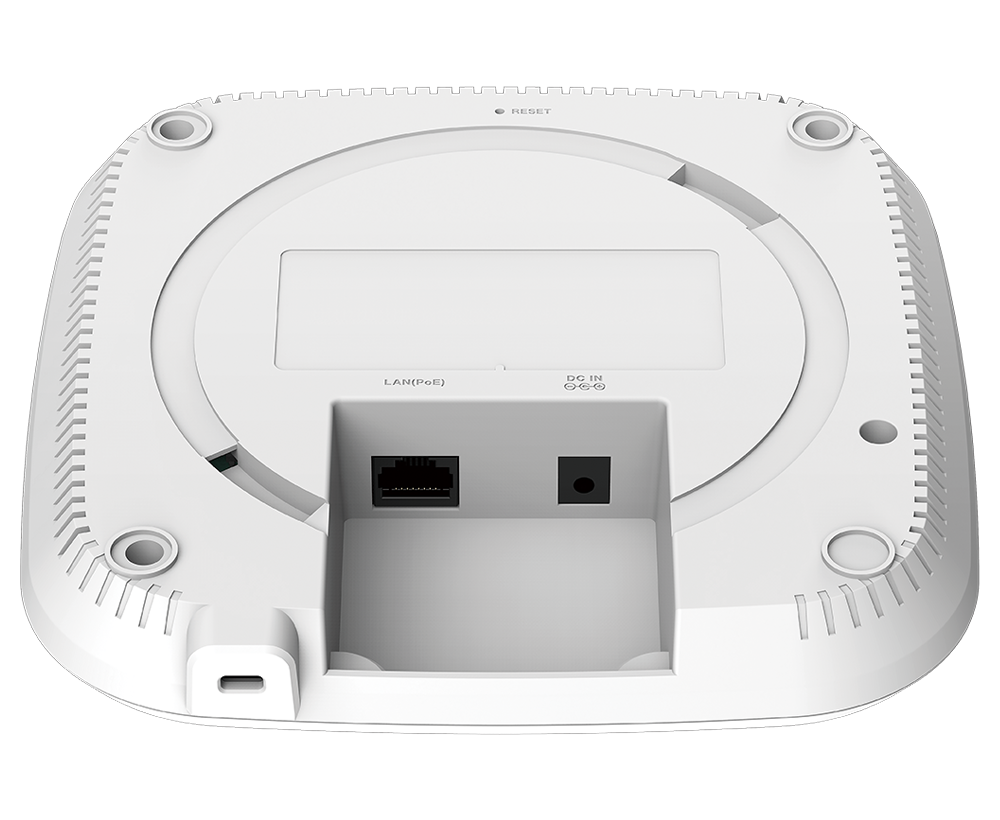

- 1 × Gigabit PoE LAN port for flexible installation

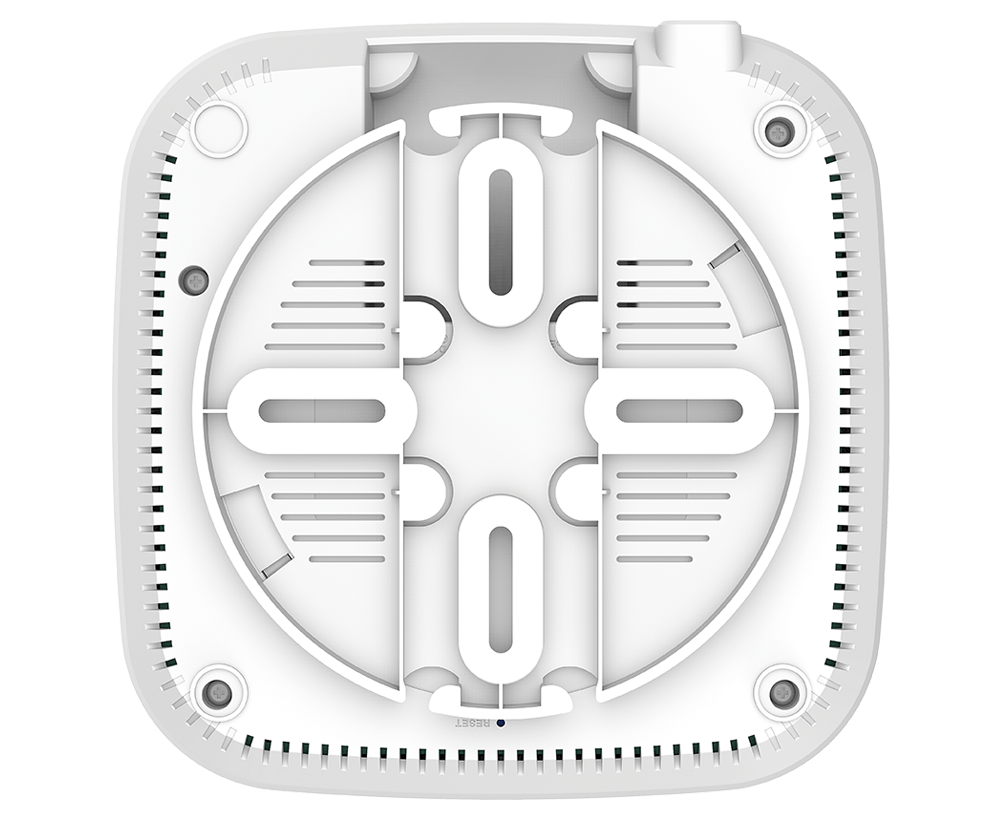

- Wall or ceiling mount options to suit various environments
- Dual-band support for optimal performance
- Seamless roaming keeps devices connected without interruption
- Mesh technology effortlessly expands coverage
- WPA3 encryption for enhanced wireless security
- Guest Wi-Fi support to safeguard the main network
- Made in Taiwan
Wi-Fi 6 Access Point for Seamless, Smarter Connectivity
The DBR-X3000-AP delivers fast, reliable Wi-Fi 6 performance and supports PoE for flexible, space-saving installation options. It supports mesh technology to ensure seamless wireless coverage throughout the entire business environment. With centralised wireless monitoring and management, IT teams can easily oversee and maintain network performance. Advanced WPA3 encryption and dedicated Guest Wi-Fi access provide secure, reliable connectivity for both business owner and visitors. Engineered to meet the evolving needs of modern small businesses, the DBR-X3000-AP combines performance, security, and ease of management in one powerful device.
Wi-Fi 6 Ready
Enjoy fast data transfers with speeds up to 3Gbps, reducing wait times
Broader Wi-Fi Coverage
Mesh support helps extend coverage across more rooms and areas, reducing gaps in connectivity
Flexible Installation
PoE-enabled ports simplify installation and power up 8 devices
Secure Wireless Networking
Firewall protection and the latest WPA3 encryption keeps your network safe from unauthorised access and cyber threats
Exclusive Guest Wi-Fi
Enables a separate Wi-Fi network for visitors to help keep business and guest traffic apart
Centralised Management
Integrates with Smart Office Series routers for VPN, firewall security, and access point management, all from a single dashboard.
Setup in Minutes, Manage with Confidence
Setting up and managing the DBR-X3000-AP becomes convenient and effortless. Integrated with the DBR-700, DBR-600-P Smart Office Series Business Routers, you can not only centrally control all Access Points at once but also monitor your network in real-time and troubleshoot through the intuitive dashboard, freeing up resources to allow IT teams to focus on more critical tasks.
Wi‑Fi 6 performance that helps turbo charge your business
Dual-band Wi-Fi 6 speeds up to 3Gbps* help keep streaming, video calls, and everyday work moving. 1 × Gigabit PoE LAN (802.3af, up to 12.95W)* supports one-cable installs, and the compact wall / ceiling-mount design fits offices, classrooms, and retail. WPA3, VLAN tagging, and up to seven SSIDs support smarter segmentation, while Guest Wi-Fi (Guest Zone) lets you create visitor networks separate from your main Wi-Fi to help reduce security risks. Use standalone - or manage centrally with DBR-600-P / DBR-700 Multi-Gigabit Business Routers (sold separately) for one-dashboard control.
Learn more about Wi‑Fi 6
Boosts Your Business with Advanced Wi‑Fi 6
Powered by advanced Wi-Fi 6 and dual band technology, the DBR-X3000-AP enables high-speed data transfers and superior-quality video streaming while connecting multiple devices at once without interference. It delivers a reliable and responsive wireless experience, even in highly congested environments.
Mbps*
Channels*
2.4GHz / 5GHz*
802.3at*
Stay Connected without Missing a Beat
Easily expand your network by wirelessly connecting up to three Smart Office Series Access Points as mesh nodes through the DBR-700, DBR-600-P Smart Office Series Business Router’s management platform. It minimises dead zones, ensures consistent performance, and delivers stable connectivity throughout every corner of your space.
With seamless roaming, devices transition smoothly between Access Points without dropping the connection. Whether you're on a video call, streaming, or working online, enjoy a consistently smooth and reliable network experience wherever you move.
Experience uninterrupted connectivity and reliable Wi-Fi coverage across the entire business area with the DBR-X3000-AP.
Crafted for Uncompromised Network Security
The DBR-X3000-AP supports WPA3 Personal/Enterprise and Guest Wi-Fi, creating a secure digital environment for you and your visitors.
WPA3 Personal/Enterprise enhances protection against unauthorised access and safeguards sensitive data, providing peace of mind when connecting in public areas like cafes, airports or other shared spaces. For visitors, Guest Wi-Fi offers a separate, isolated connection that protects your main network, keeping sensitive data and devices secure.
These advanced security features make the DBR-X3000-AP an ideal solution for both homes and businesses that require high-quality network security.

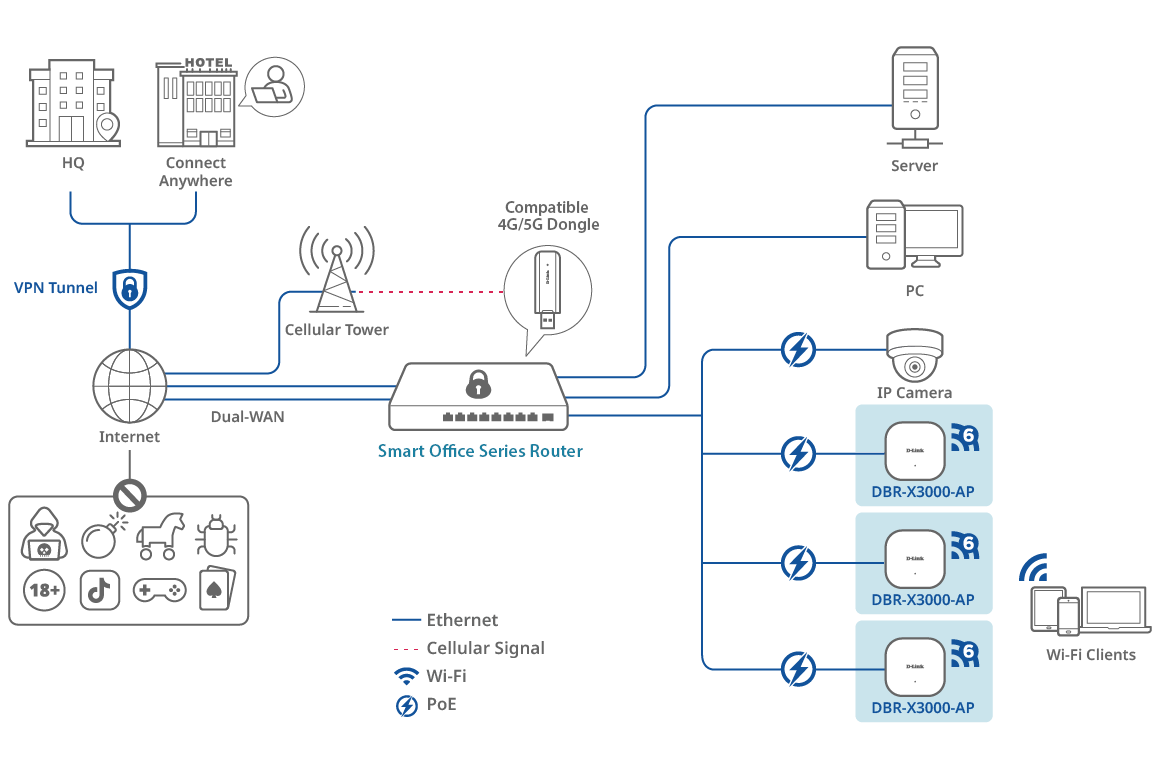

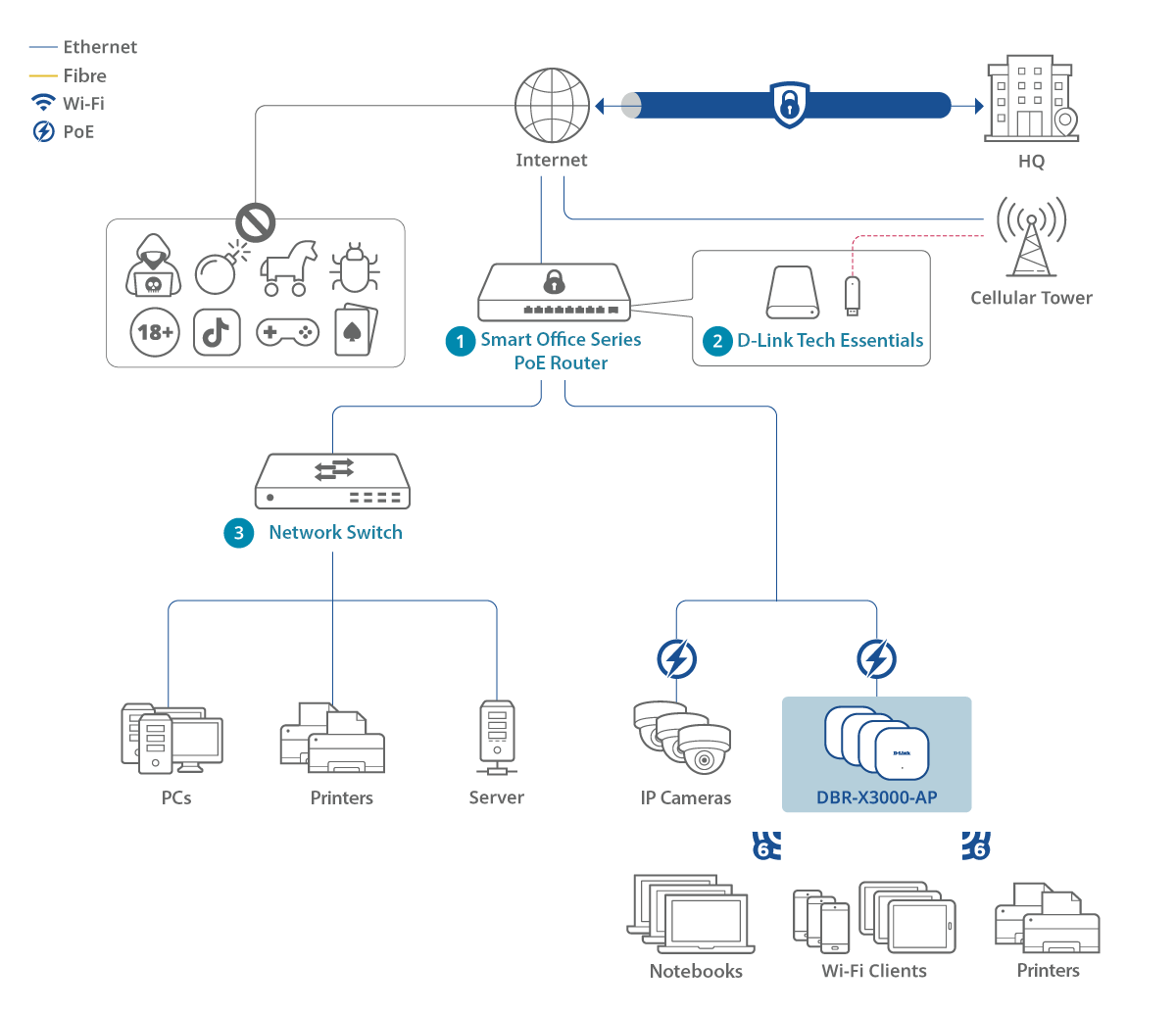

Typical Business Topology
Engineered for high performance, robust security, and efficient network management, D-Link’s Smart AP leverages Wi-Fi 6 dual-band technology with PoE support to deliver fast, reliable connectivity. The WPA3 Personal/Enterprise and Guest Wi-Fi feature isolates traffic to safeguard sensitive data, reducing security risks, while centralised management through D-Link business routers ensures effortless deployment and control. With advanced mesh technology, it enables flexible and rapid network expansion throughout a building.
Real-World Applications
Smart Office
Hotel
Smart Office
User benefits:
- Ensures secure remote access with robust protection
- User-friendly web UI simplifies configuration and setup
- Easily expands Wi-Fi coverage with multiple mesh nodes
- Advanced Guest Wi-Fi for main network protection
Learn more:
- Smart Office Series PoE Router: DBR-600-P
- 4G LTE USB Adapter: DWM-222W
- Network Switch: DMS-1250-12

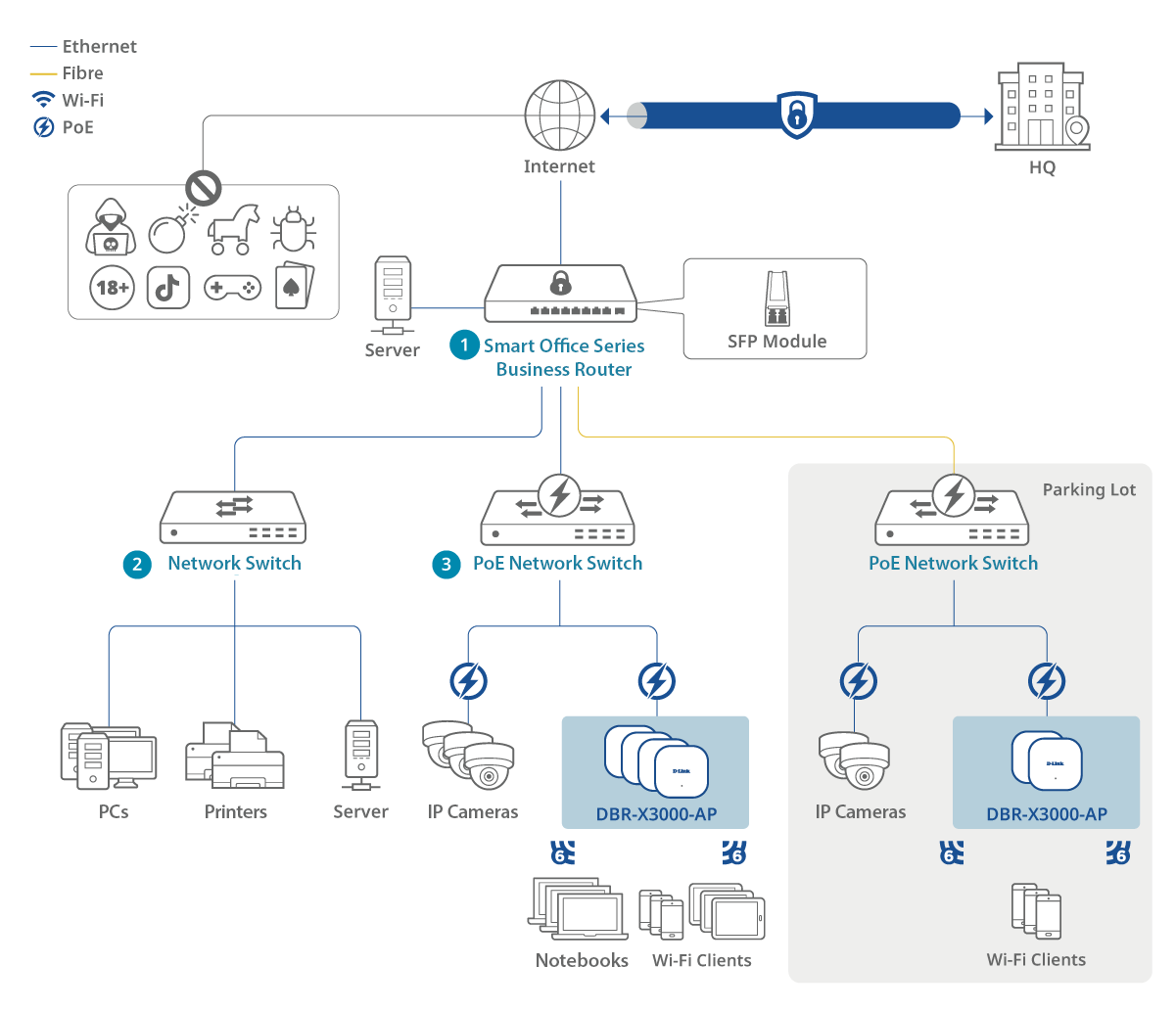

Hotel
User benefits:
- Offers seamless coverage with advanced mesh technology
- Enhanced security ensure a secure browsing experience
- Captive portals control user access and enhance security
- Manage and monitor access points through a central platform
Learn more:
- Smart Office Series Business Router: DBR-700
- Network Switch: DMS-1250-28
- PoE Network Switch: DMS-1250-28P
- All references to power capacity, data storage capacity, distance, signal range, signal or processing speed, data encryption, and other performance metrics are based on optimal conditions derived from industry standards and are provided for informational purposes only
- Actual performances and speeds may vary and can be affected by service plan, network configuration, device/cable limitations, temperature, and other environmental conditions. Multi-Gig speeds require compatible service and equipment.
| Management Options : | Standalone|Controller Managed |
| Wi-Fi Bands : | Dual Band 2.4 and 5 GHz |
| AP Design : | Indoor|Built-in Antennas|PoE+ |
| Central Management : | DBR-series Business Router |
| Wi-Fi Type : | Wireless AX3000 |
| Antenna Type : | Built-in |
| Auto Channel Selection : | Yes |
| Dimensions (Size) : | 170 x 170 x 34 mm |
| LAN Interface : | 1 x Gigabit |
| Operation Modes : | AP|WDS (Site-to-Multisite)|WDS+AP |
| PoE Standard : | PoE+ 802.3at |
| Security : | 802.1x|WPA/WPA2-EAP| WPA/WPA2-PSK|MAC filtering|WPA3 |
| Number of SSIDs : | 7 |
| Warranty : | Limited Lifetime |
| Indoor or Outdoor : | Indoor Deployment |
| Wi-Fi Configuration : | Wi-Fi 6|2.4 GHz / 5 GHz Dual Band|Wireless AX3000 |
